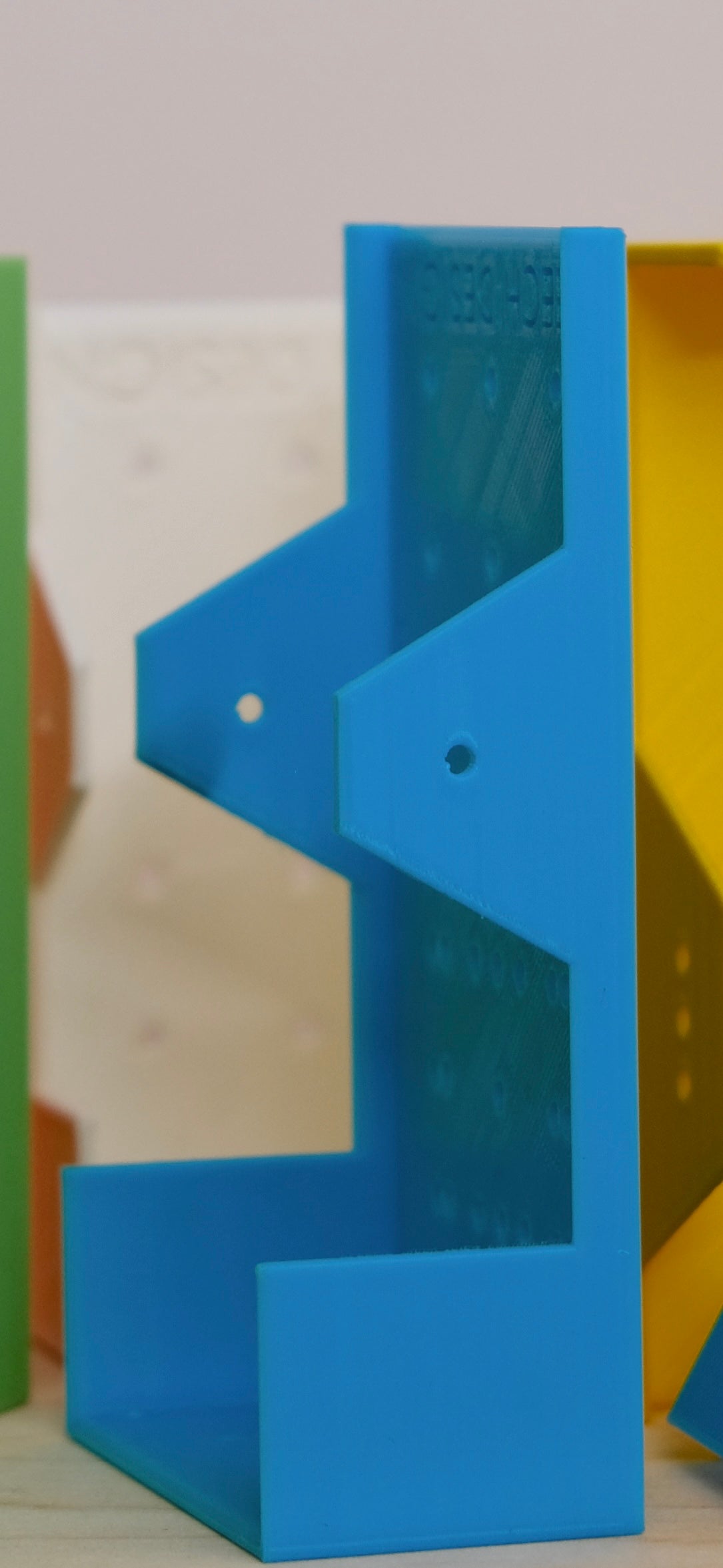

125B Pedal Drill Jig

The jig you’ve all been waiting for is finally here! This jig provides point-to-point, or strip board/vero board builders an almost infinite number of ways to configure your pedal components, while also being compatible with a number of PedalPCB and Aion FX kits and PCBs! Please check the 2D CAD drawing of hole coordinators/positions to make sure your design will work as planned. While we've tried to accomodate as many options as possible, we are not responsible for any issues with alignment with third party kits.
