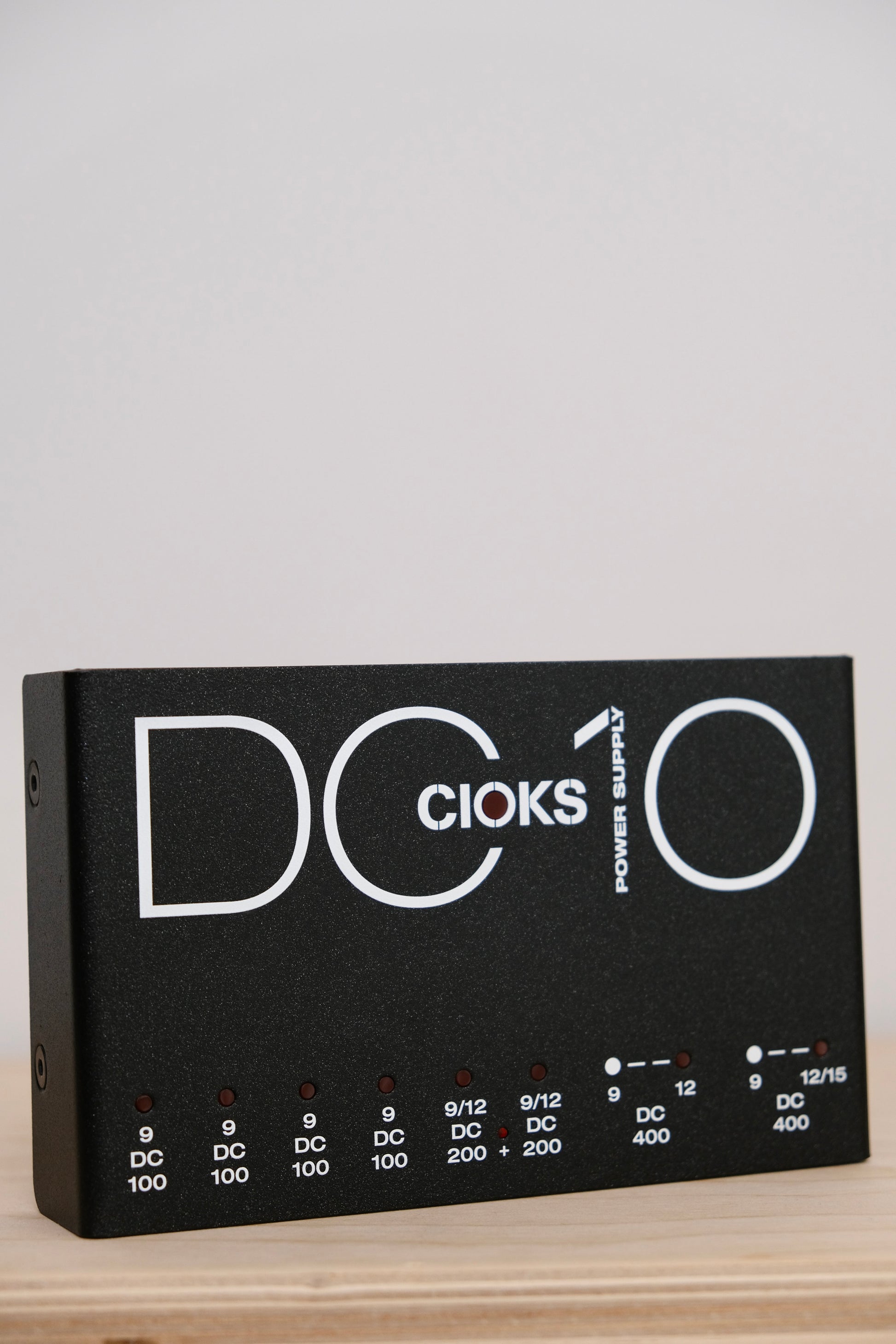

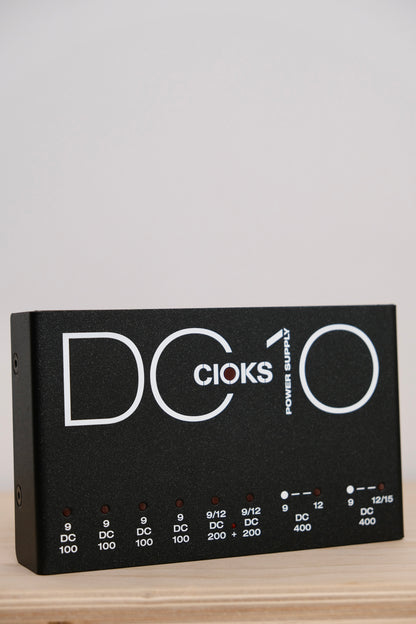

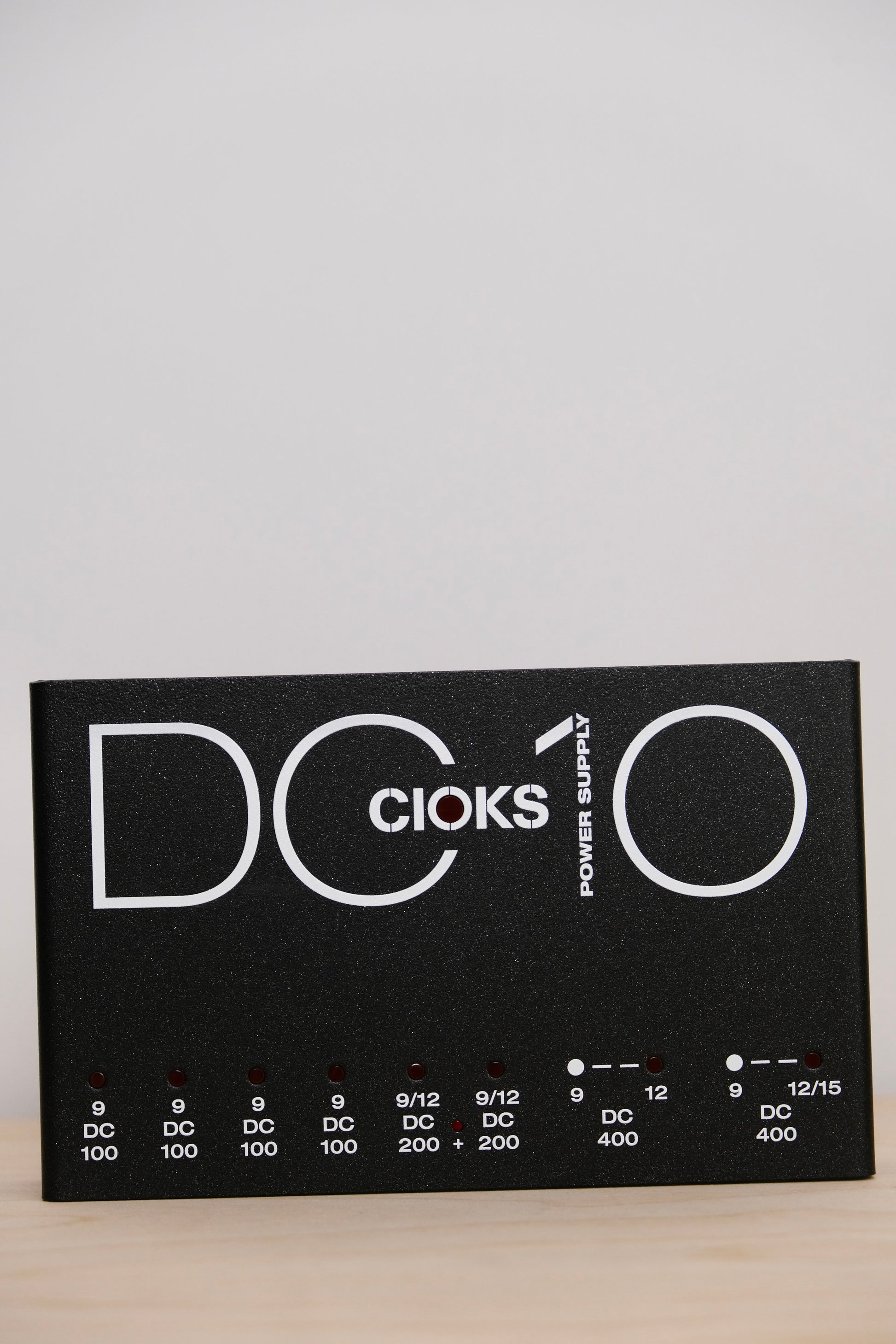

DC10 is a multi-output power supply for effect pedals based on a toroidal transformer. It has 10 regulated and well-filtered DC outlets configured in 8 isolated sections. With a total of 1.600mA it’s a perfect solution for bigger rigs with DC pedals only.
The three powerful sections with 400mA each will power pedals with special requirements like Strymons, Eventides, TC Electronic Nova-series pedals or TC Helicon pedals, Moogerfoogers, Radial Tonebone pedals or others without the need of special cables. Selectable with a switch DC10 offers voltages 9, 12 and 15V, and combined with the included Stack Flex or Series adapter Flex also 18 and 24V. The first 4 isolated outlets offering 4x100mA are perfect for standard 9V low current pedals.

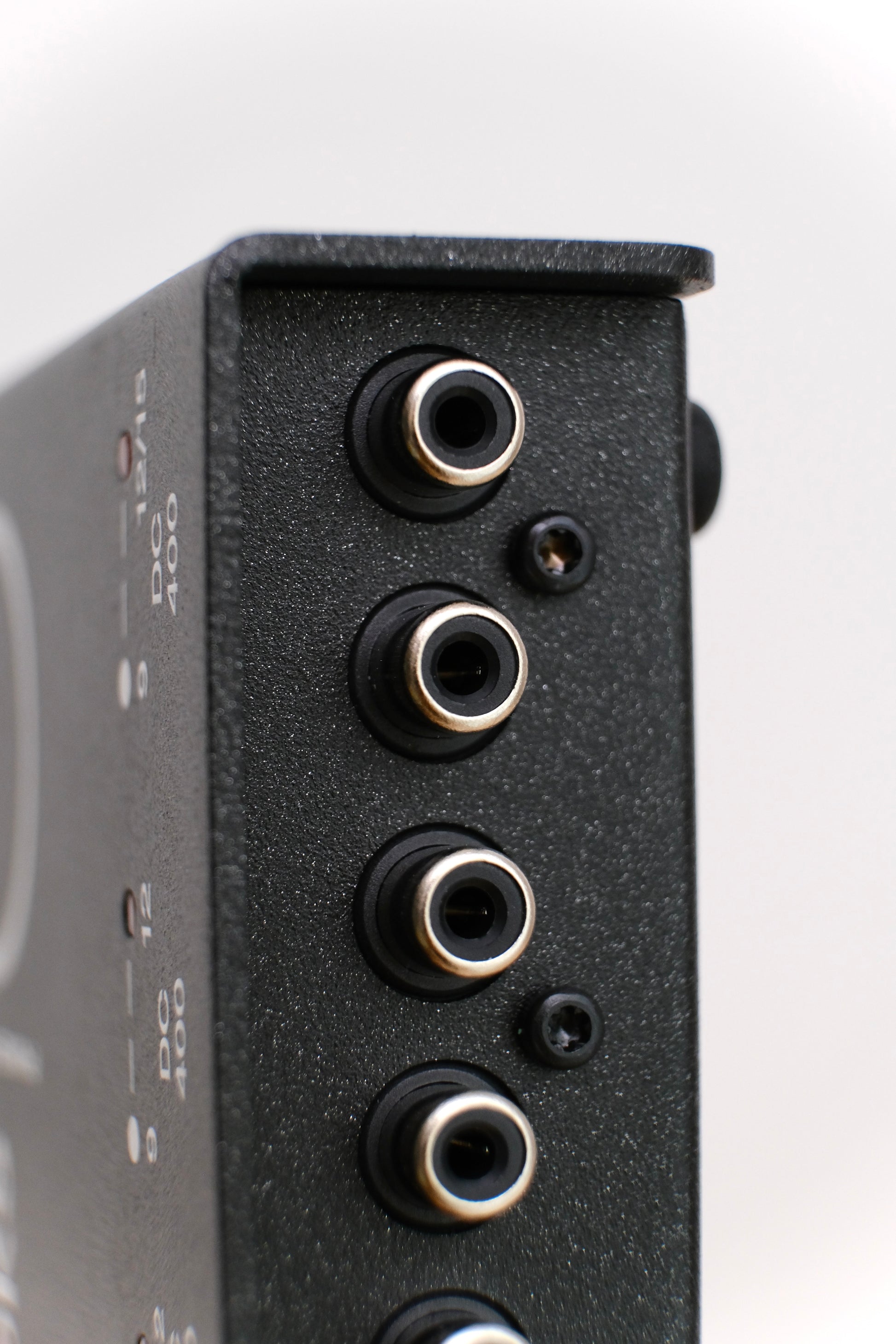

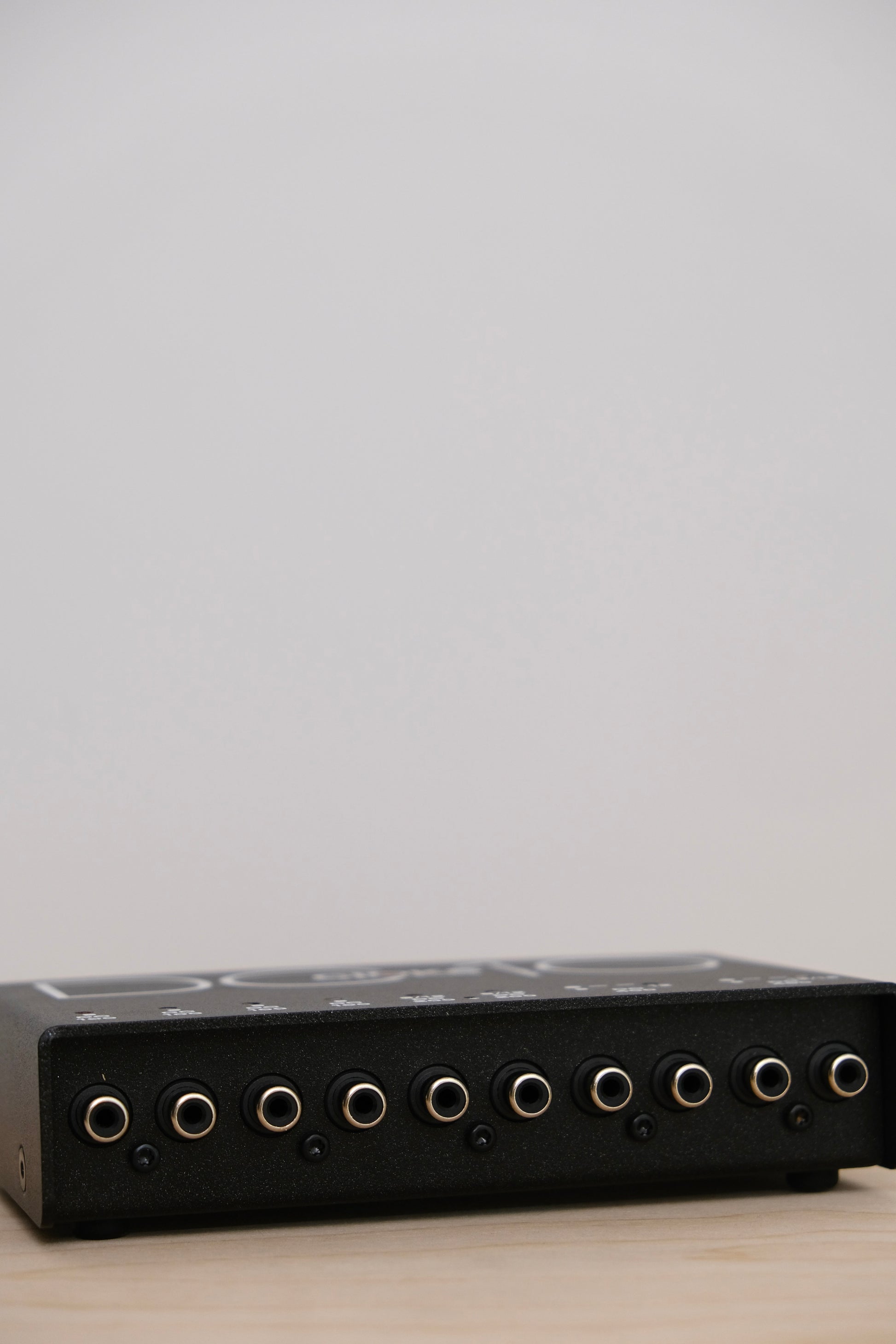

- 10 outlets configured in 8 isolated sections
- Toroidal transformer with additional electromagnetic field shielding
- 3 powerful DC sections with 400mA each
- 15V option for Radial Tonebone pedals
- Short circuit protection of all outlets
- Advanced LED monitoring of each section
- Temperature monitoring

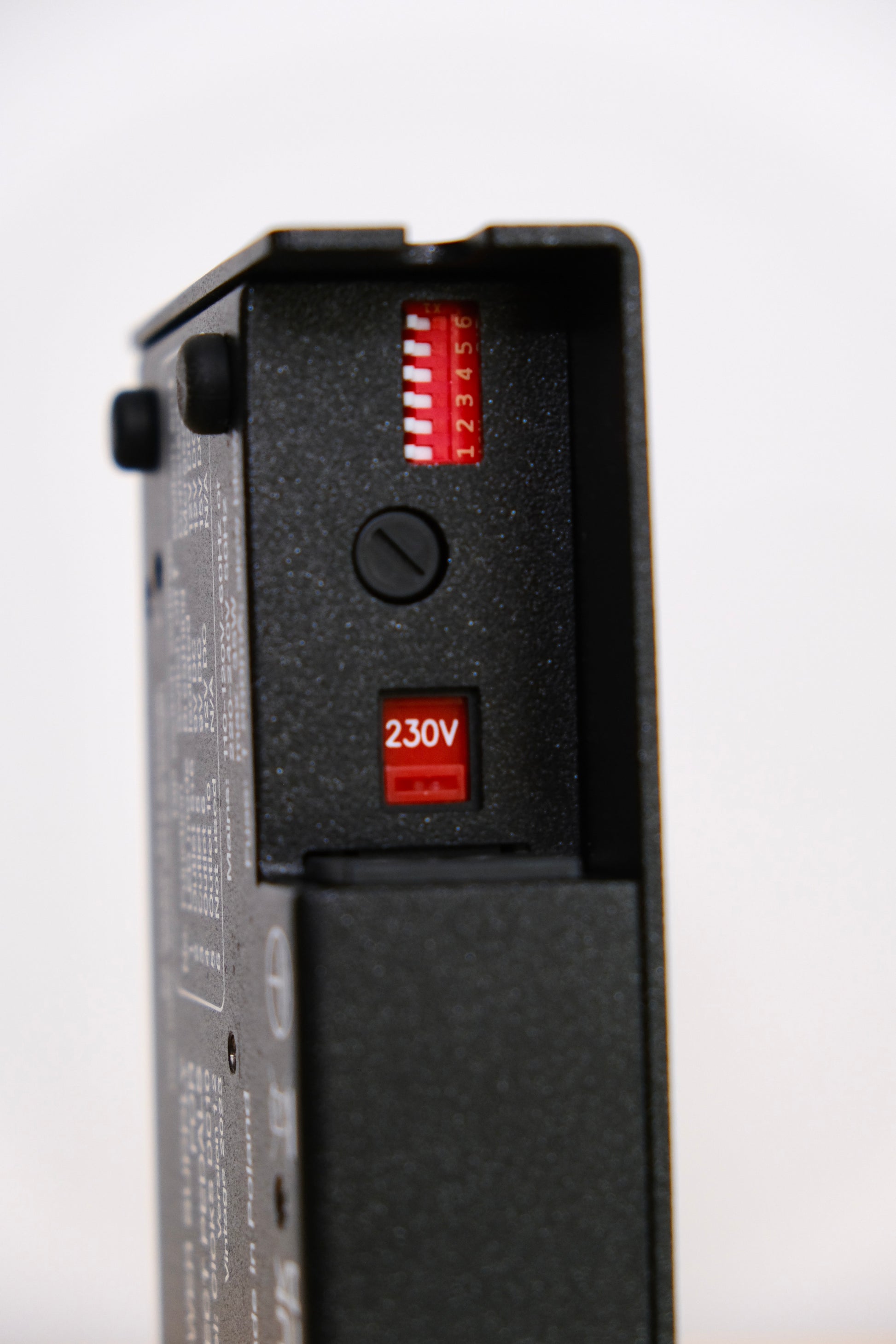

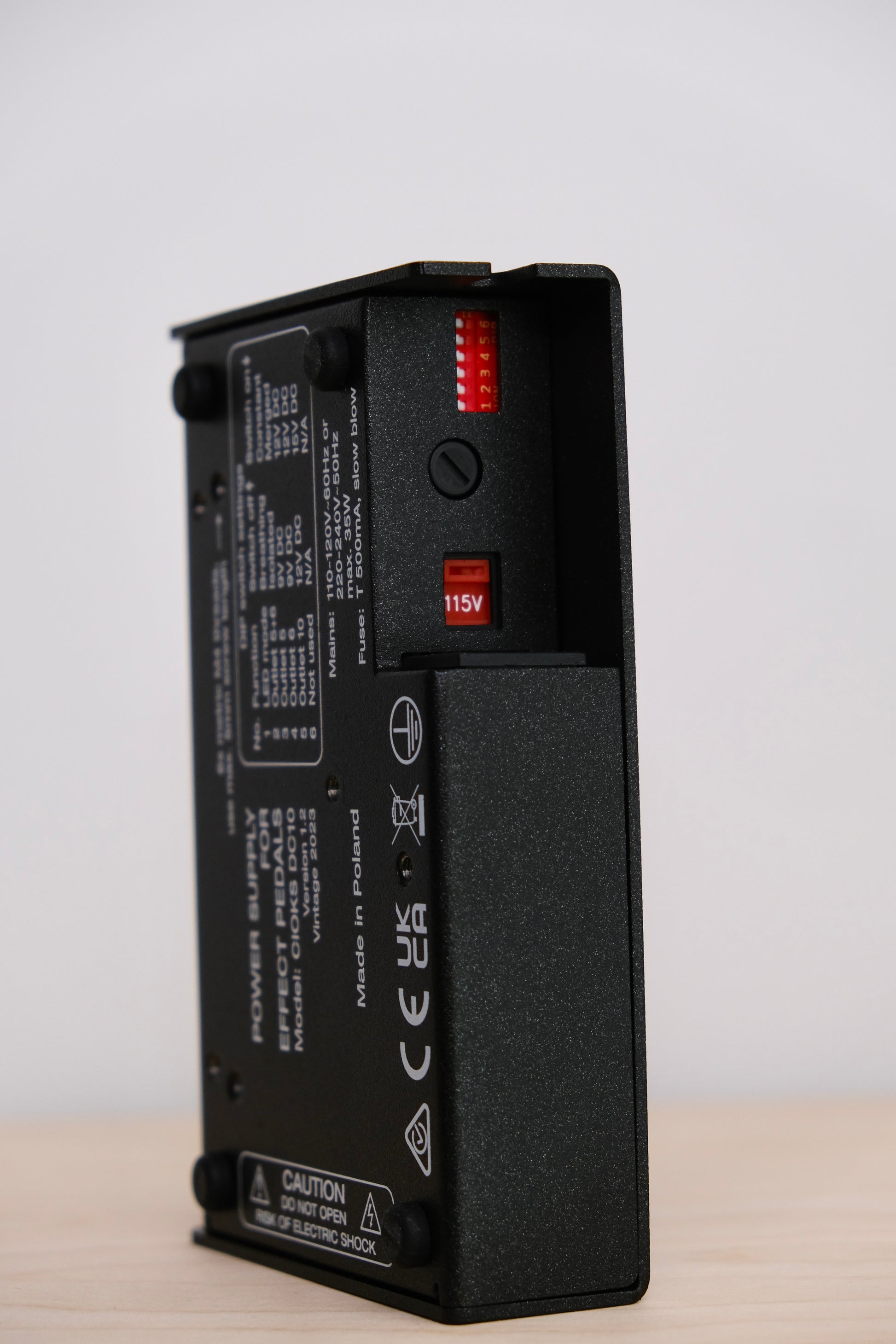

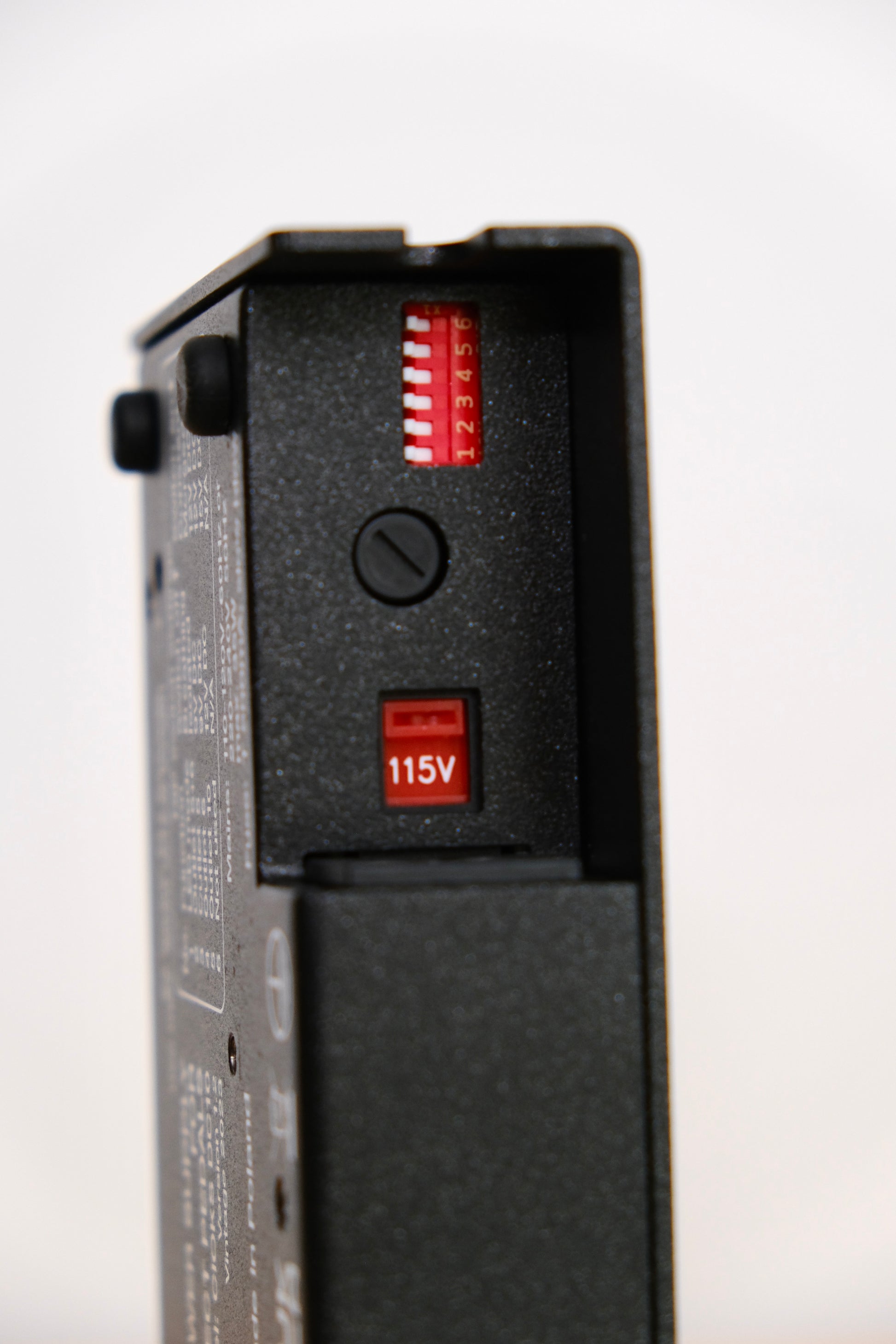

- 120 or 230V mains voltage operation
- A total of 16 Flex cables included
- Split Flex for powering two pedals of one outlet included
- Stack Flex and Series adapter Flex for powering 18 or 24V pedals included
- Compatible with Pedaltrain and Temple Audio pedalboards

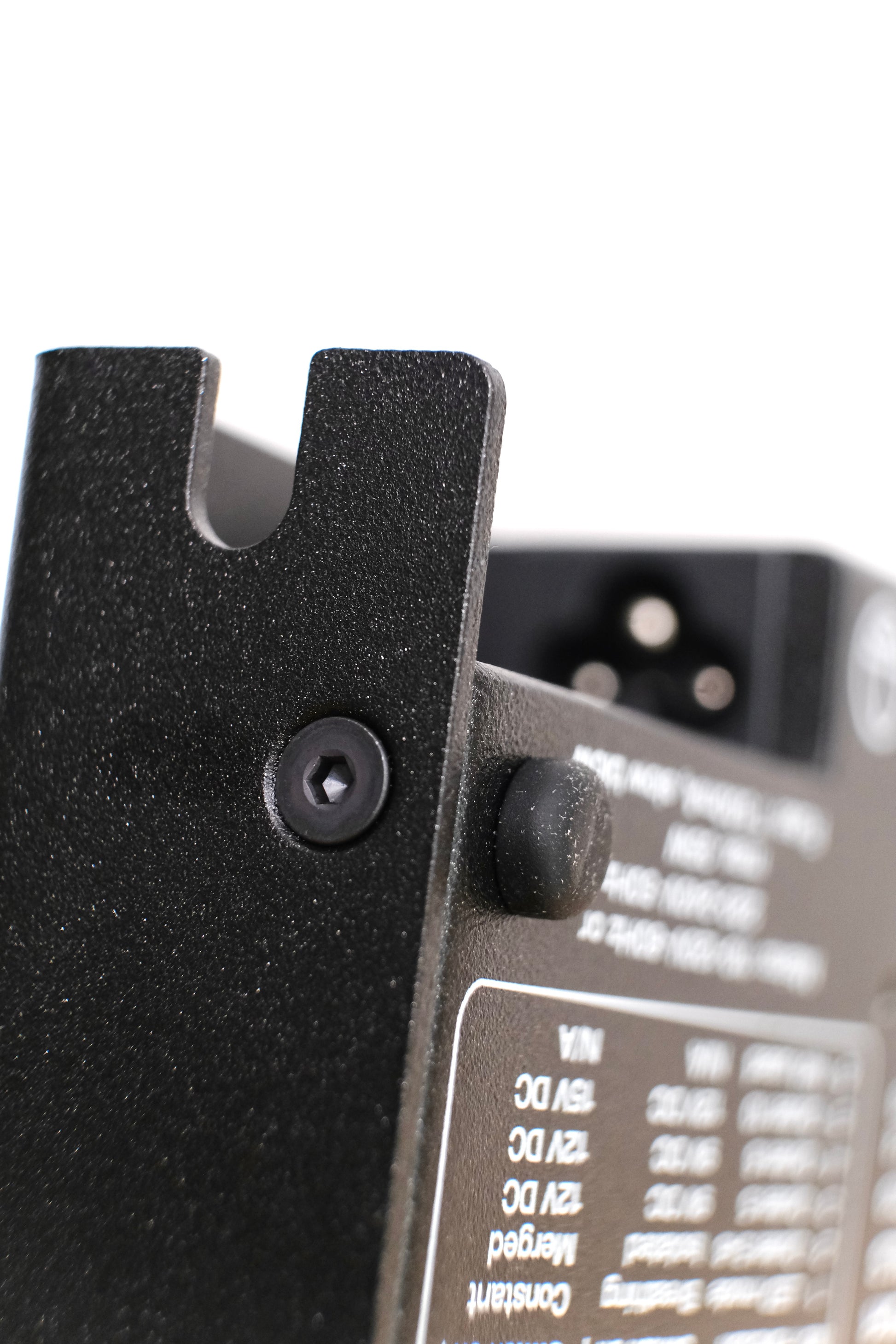

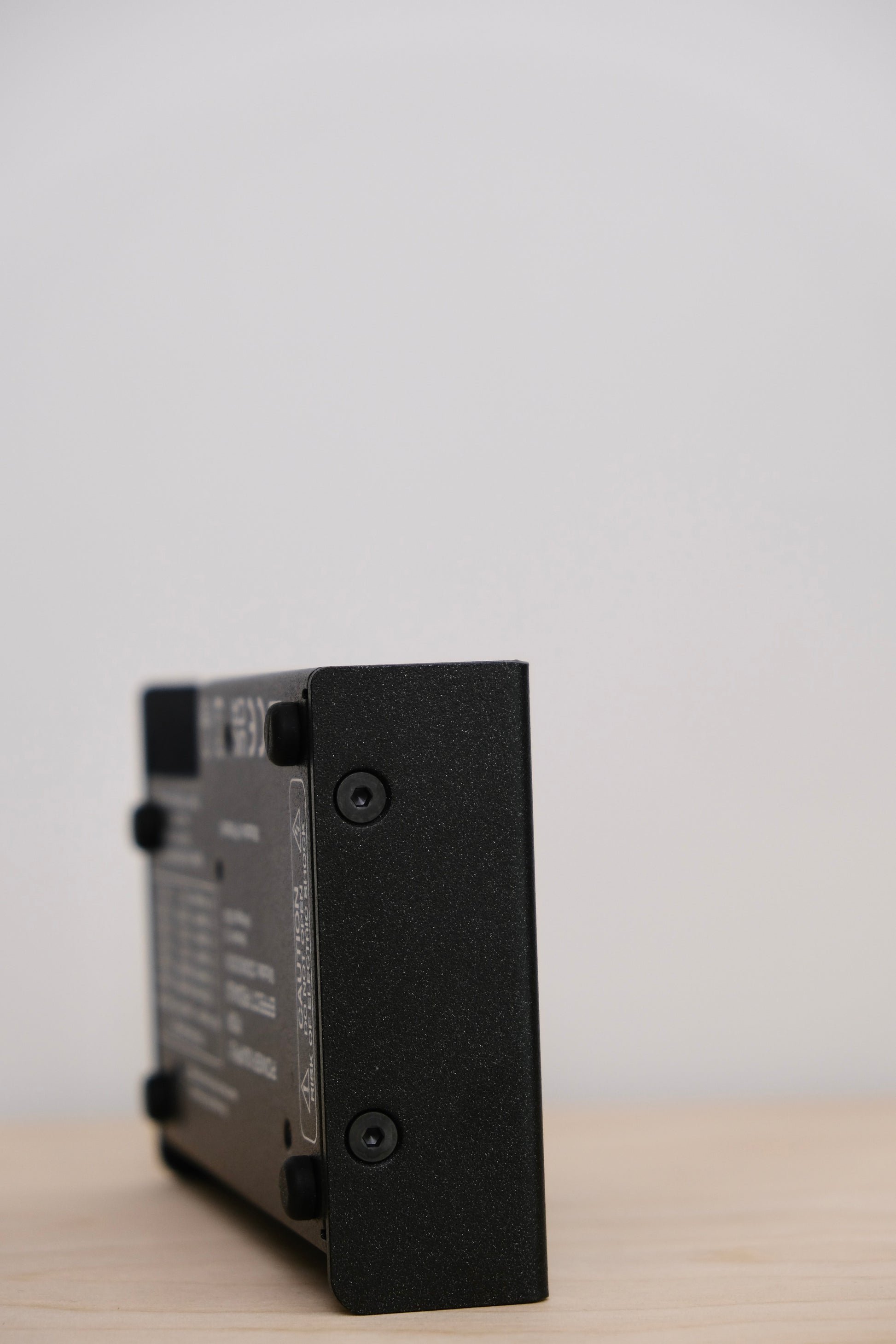

- Mounting bracket and all pedalboard mounting hardware included

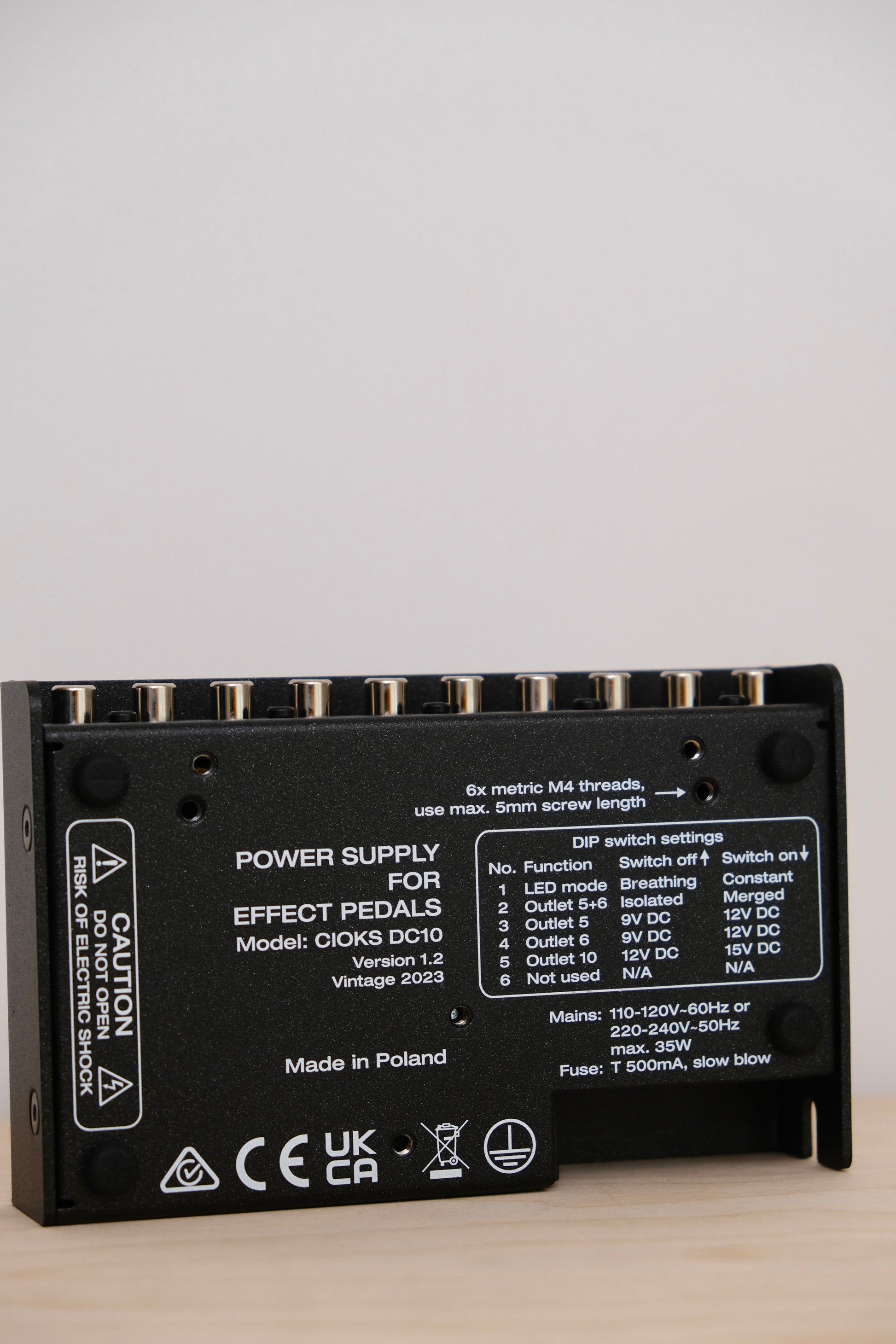

Specifications
- Outlet 1-4: 9V DC / 100mA each
- Outlet 5-6: 9 or 12V DC / 200mA each*
- Outlet 7-8: 9 and 12V DC / 400mA
- Outlet 9-10: 9 and 12 or 15V DC / 400mA
- Size: 158x98x35mm (excl. detachable rubber feet)
- Weight: 1,1kg
- Warranty period: 5 years worldwide
* can be merged into a 400mA section
What's in the Box
- CIOKS DC10 power supply
- Mains power cord
- 16 Flex cables:
- Type 1 – black with 5,5/2,1mm centre negative DC plug x8
- Type 2 – red with 5,5/2,1mm centre positive DC plug x1
- Type 4 – green with 5,5/2,5mm centre positive DC plug x2
- Type 5 – black with 3,5mm tip positive Jack plug x1
- Type 6 – black with 9V battery clip x1
- Split Flex type 1 – black, powers two pedals of a single outlet x1
- Stack Flex type 1 – white/black, adds voltages of two outlets x1
- Series Adapter Flex – white, adds voltages of two outlets x1
- Pedalboard mounting hardware: mounting bracket, screws, washers, stand-off and hex key
- Manual
- Product sheet (drill guide)
- Flex guide
