CIOKS

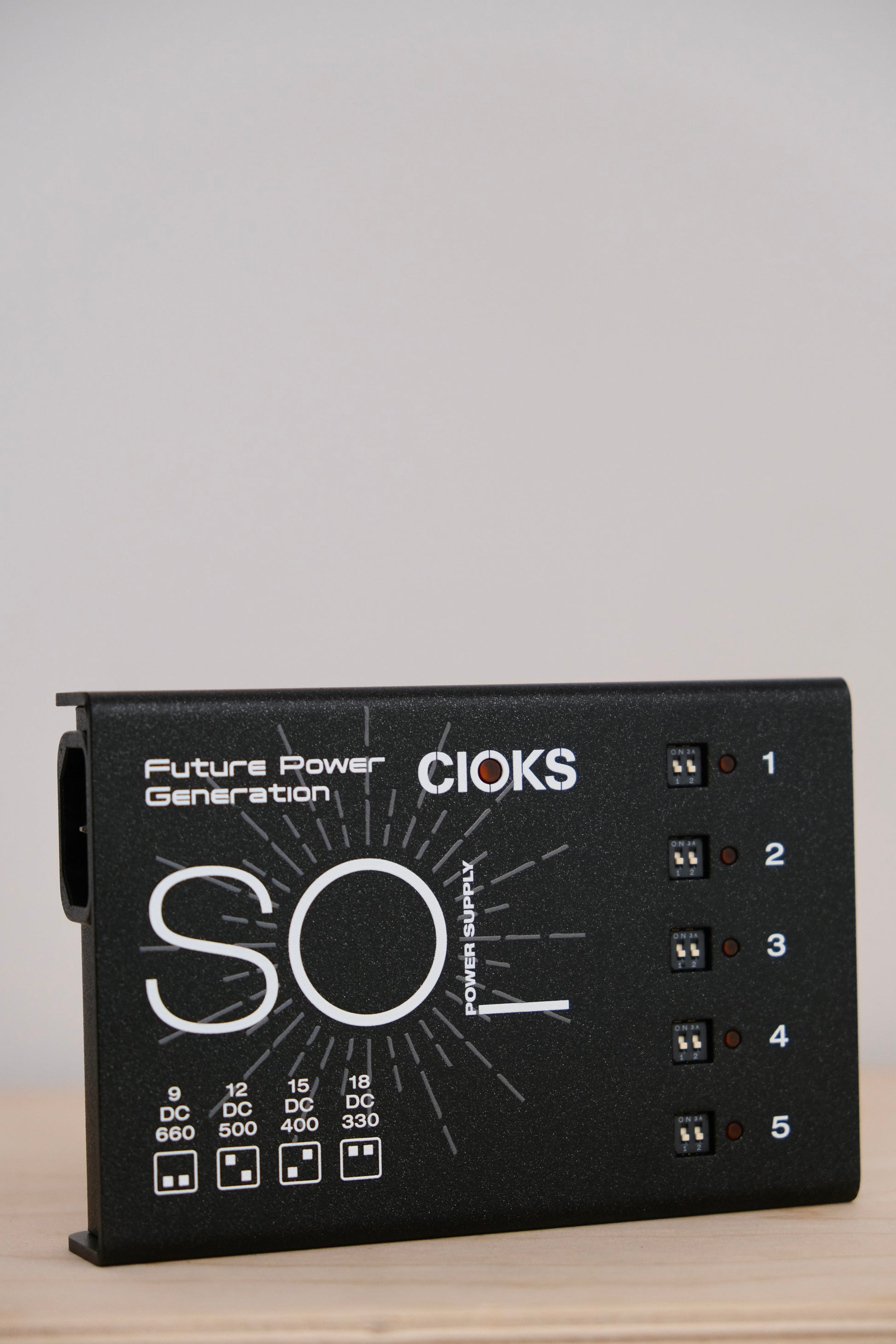

CIOKS SOL

CIOKS SOL

Regular price $179.00 USD
Regular price Sale price $179.00 USD
Sale Sold out
Shipping calculated at checkout.

Brand New. Authorized Dealer.

SOL- 5 isolated outlets. Multi voltage and amperage per outlet.

From the manufacturer:

SOL is the ultimate solution for bringing life to a small to medium-sized pedalboard setup, especially if you are using power-hungry pedals. SOL is the smallest mains-powered switch-mode power supply we make at CIOKS (no wall-warts here) and the no-frills design plus massive power will leave you free to focus on your creative spark.

Featuring the same 660mA at 9V DC per outlet and four switchable voltages on each outlet as its bigger brother CIOKS DC7, SOL is the most powerful small form-factor power supply available today with a total of 30 watts of DC power available.

Features

  • CIOKS SOL has the same groundbreaking 1-inch profile (25,4mm) as CIOKS DC7
  • Ultra-low noise achieved by multistage filtering

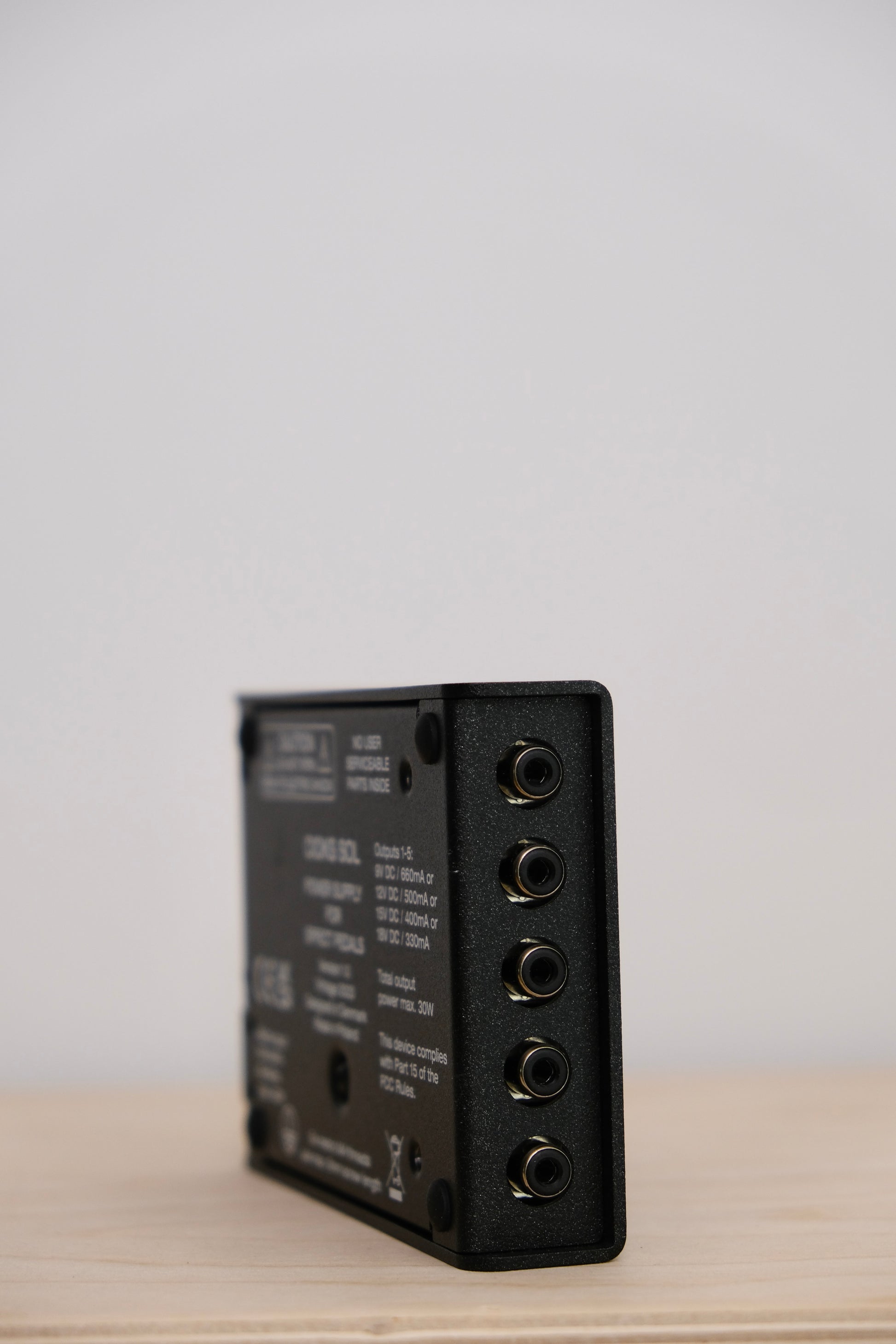

  • 5 isolated DC-outlets, 6W each
  • 660mA at 9V on each outlet

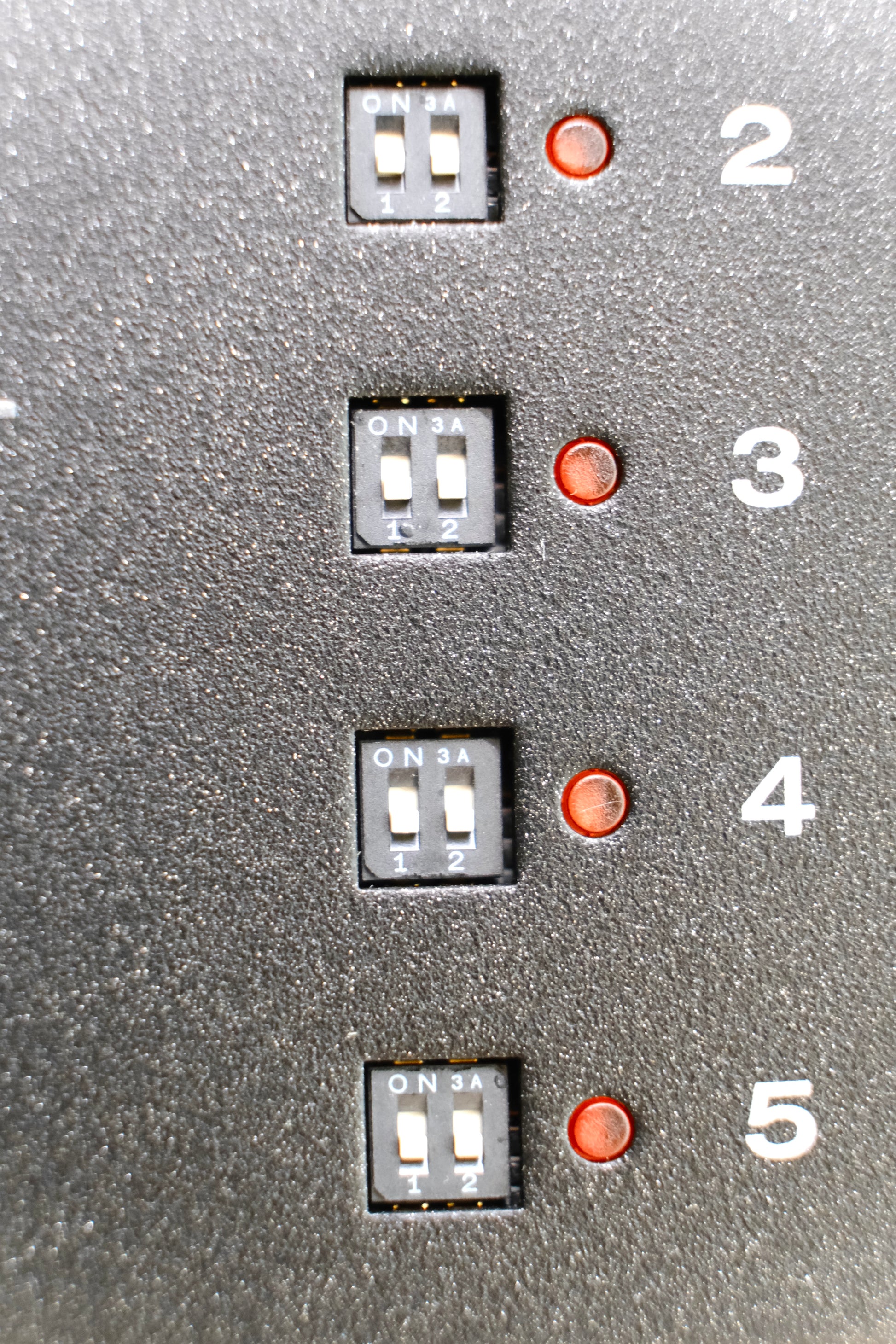

  • 4 selectable voltages on each outlet • Total maximum power 30W
  • Mounting hardware for Pedaltrain and Templeaudio Boards included
  • Compatible with CIOKS GRIP v2.0 for drill-free mounting underneath Pedaltrain boards*
  • 9 Flex cables included
  • Designed in Denmark, assembled in Poland
  • 5-year worldwide warranty

*Sold separately

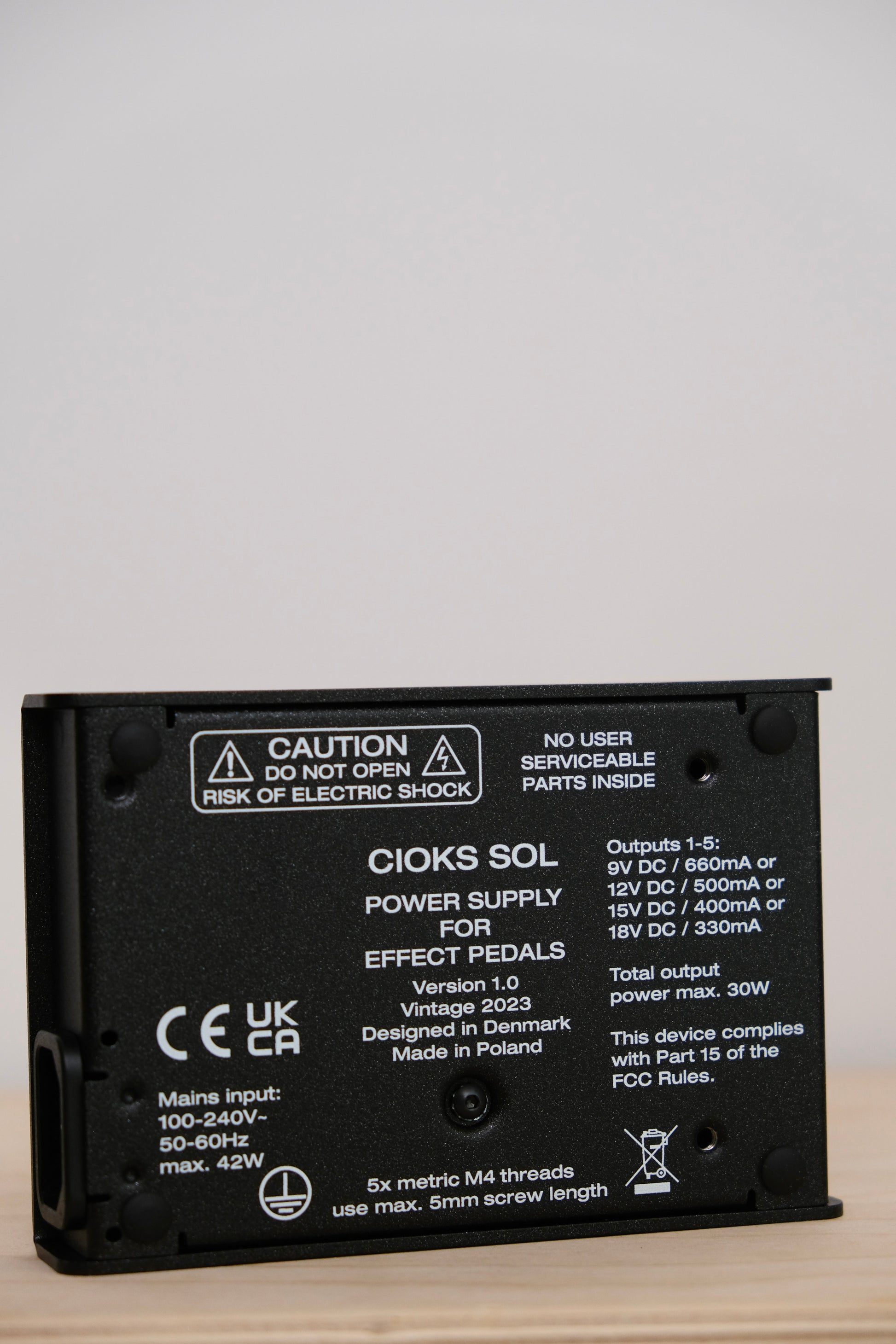

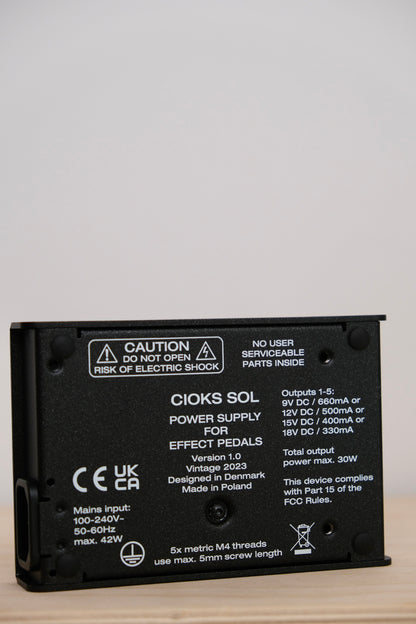

Specifications

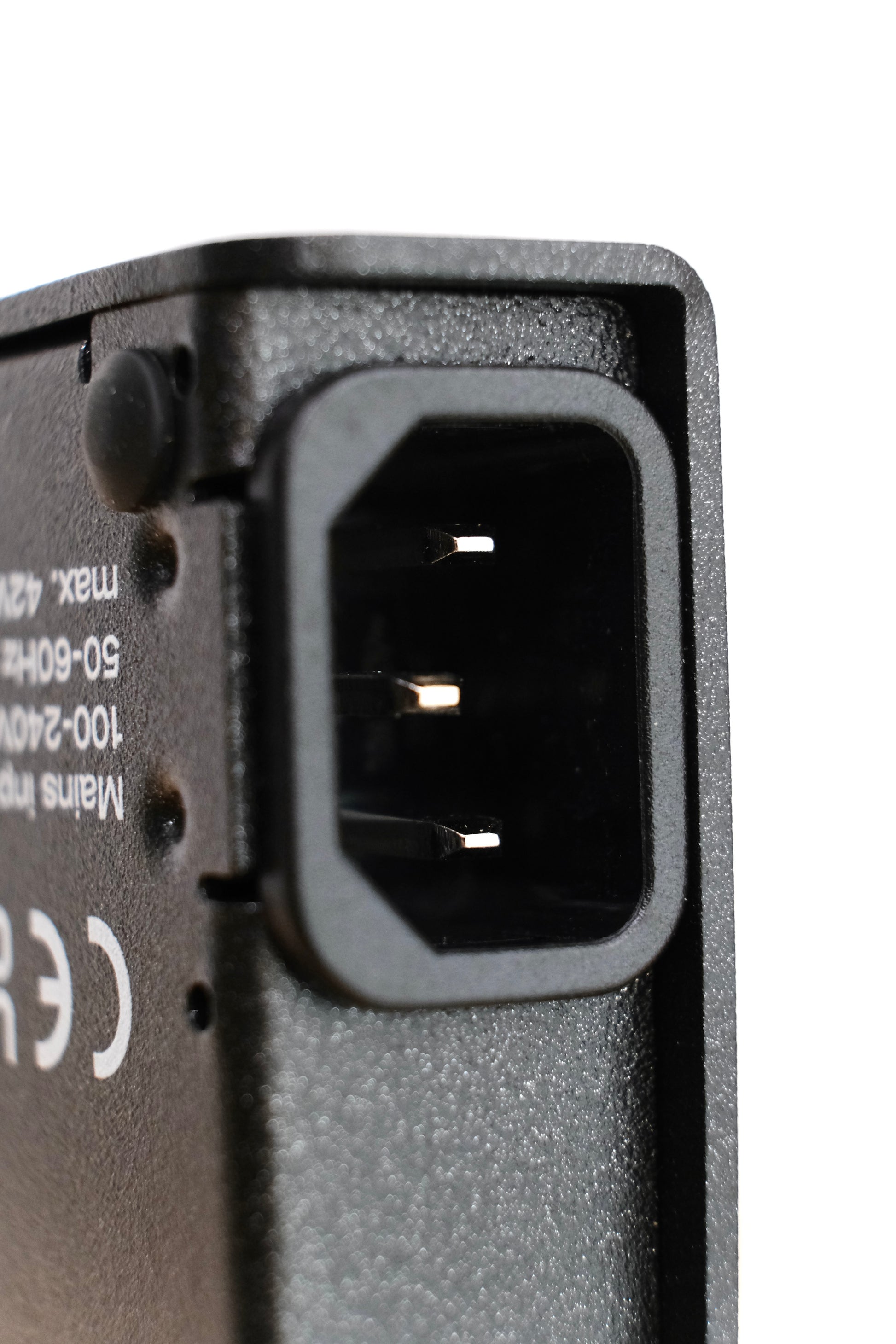

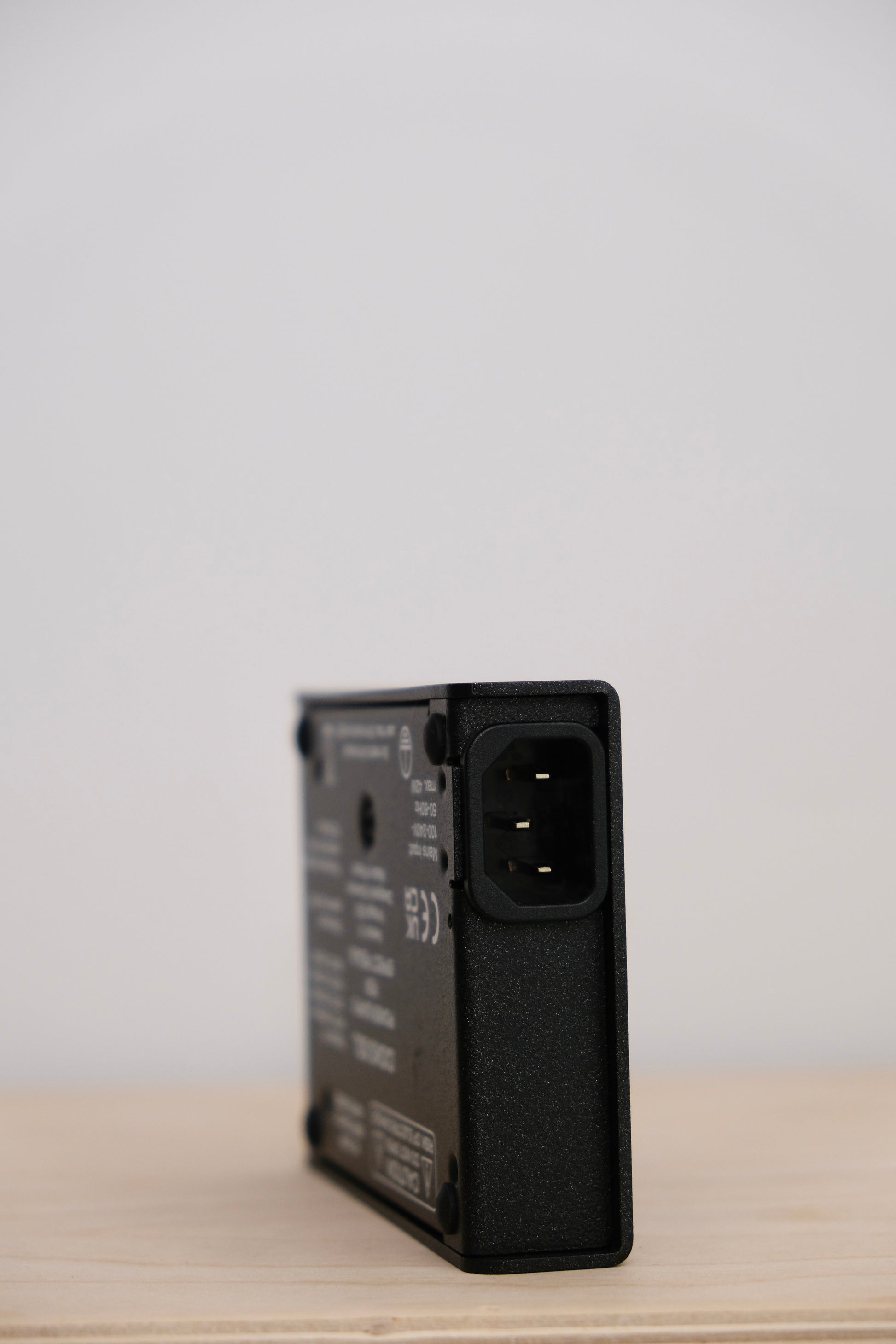

  • Mains input: 100-240V AC universal
  • Outlet 1-5:
  • 9V DC / 660mA or 12V DC / 500mA or 15V DC / 400mA or 18V DC / 330mA each Total output power: max. 30W

What's in the Box

  • 3 x 1030 - Type 1 - 5,5/2,1mm DC plug, centre negative, L-shape, 30cm (black)
  • 2 x 1050 - Type 1 - 5,5/2,1mm DC plug, centre negative, L-shape, 50cm (black)
  • 1 x 2050 - Type 2 - 5,5/2,1mm DC plug, centre positive, L-shape, 50cm (red)
  • 1 x 4050 - Type 4 - 5,5/2,5mm DC plug, centre positive, L-shape, 50cm (green)
  • 1 x 1035 - Split Flex type 1 - 30 & 50cm (black)
  • 1 x 1533 - 3-way daisy chain Flex type 1, 30+30+50cm (black)1 x
  • SOL power supply
  • 1 x AC power cord (region specific)
  • 9 x Flex cables
  • Mounting hardware for Pedaltrain and Templeaudio boards
  • Product manual
  • 1 x Flex Guide
  • 1 x CIOKS sticker sheet

Manual

Download manual
